How-To: Scan Area Detector with Motor(s)

Goals

• Use an EPICS motor (gp:m1) as the independent axis.

• Use an EPICS area detector (ad:) to collect images at each step.

• Record ROI statistics (total counts, maximum value, unique ID) without saving image files.

• Run several scan plans: bp.count, bp.scan (1-D), bp.scan (2 motors), bp.grid_scan (2-D mesh).

This notebook requires a live EPICS system. Use ad: for the area detector IOC and gp: for the general-purpose IOC (motors).

Setup

%matplotlib inline
import warnings

warnings.filterwarnings("ignore", category=FutureWarning)

import databroker
import bluesky
import bluesky.plans as bp
from bluesky.callbacks.best_effort import BestEffortCallback
from ophyd import EpicsMotor

from apstools.devices import ad_creator

cat = databroker.temp()
RE = bluesky.RunEngine({})
RE.subscribe(cat.v1.insert)
bec = BestEffortCallback()
RE.subscribe(bec)

1

EPICS Devices

Connect to the motor and the area detector.

m1 = EpicsMotor("gp:m1", name="m1")
m2 = EpicsMotor("gp:m2", name="m2")
m1.wait_for_connection(timeout=10)
m2.wait_for_connection(timeout=10)
print(f"{m1.connected=}  position={m1.position:.4f}")
print(f"{m2.connected=}  position={m2.position:.4f}")

m1.connected=True  position=1.0000
m2.connected=True  position=0.5000

Create the area detector using ad_creator(). We include the cam, image, pva, roi1, and stats1 plugins. The hdf1 plugin is intentionally omitted here — we want ROI statistics only, with no image files written.

IOC = "ad:"

adsimdet = ad_creator(
    IOC,
    name="adsimdet",
    plugins=["cam", "image", "pva", "roi1", "stats1"],
)
adsimdet.wait_for_connection(timeout=15)
print(f"{adsimdet.connected=}")

adsimdet.connected=True

Configure the detector

Route the image through the ROI plugin into the Stats plugin, and select which statistics signals to record.

# Wire up: cam -> roi1 -> stats1
adsimdet.roi1.nd_array_port.put(adsimdet.cam.port_name.get())
adsimdet.stats1.nd_array_port.put(adsimdet.roi1.port_name.get())

# One frame per trigger.
adsimdet.cam.stage_sigs["num_images"] = 1
adsimdet.cam.stage_sigs["wait_for_plugins"] = "Yes"

# Non-blocking callbacks for all plugins.
adsimdet.image.stage_sigs["blocking_callbacks"] = "No"
adsimdet.pva.stage_sigs["blocking_callbacks"] = "No"
adsimdet.roi1.stage_sigs["blocking_callbacks"] = "No"
adsimdet.stats1.stage_sigs["blocking_callbacks"] = "No"

# Hint the statistics signals we want in the scan table.
adsimdet.stats1.kind = "hinted"
adsimdet.stats1.total.kind = "hinted"
adsimdet.stats1.max_value.kind = "hinted"
adsimdet.stats1.unique_id.kind = "hinted"

Visualise the plugin chain

adsimdet.visualize_asyn_digraph()

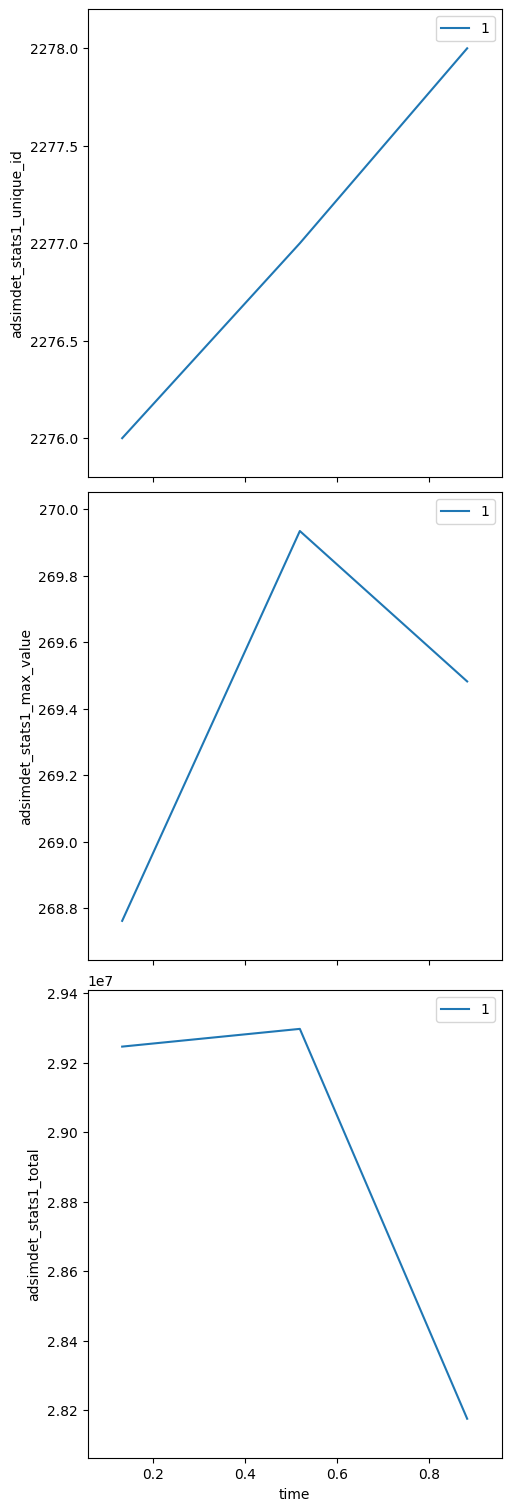

bp.count — collect statistics without a motor scan

uids = RE(bp.count([adsimdet], num=3))
cat.v2[uids[-1]].primary.read()[
    ["adsimdet_stats1_total", "adsimdet_stats1_max_value", "adsimdet_stats1_unique_id"]
]

Transient Scan ID: 1     Time: 2026-03-27 11:49:38
Persistent Unique Scan ID: 'c11b47fd-a1fc-467b-9aba-e620aa625656'
New stream: 'primary'
+-----------+------------+---------------------------+---------------------------+-----------------------+
|   seq_num |       time | adsimdet_stats1_unique_id | adsimdet_stats1_max_value | adsimdet_stats1_total |
+-----------+------------+---------------------------+---------------------------+-----------------------+
|         1 | 11:49:38.2 |                      2276 |                       269 |              29246287 |

|         2 | 11:49:38.6 |                      2277 |                       270 |              29297297 |

|         3 | 11:49:39.0 |                      2278 |                       269 |              28175553 |

+-----------+------------+---------------------------+---------------------------+-----------------------+
generator count ['c11b47fd'] (scan num: 1)

<xarray.Dataset> Size: 96B
Dimensions:                    (time: 3)
Coordinates:
  * time                       (time) float64 24B 1.775e+09 1.775e+09 1.775e+09
Data variables:
    adsimdet_stats1_total      (time) float64 24B 2.925e+07 2.93e+07 2.818e+07
    adsimdet_stats1_max_value  (time) float64 24B 268.8 269.9 269.5
    adsimdet_stats1_unique_id  (time) int64 24B 2276 2277 2278

xarray.Dataset

• Dimensions:
  • time: 3
• Coordinates: (1)
  • time
    (time)
    float64
    1.775e+09 1.775e+09 1.775e+09

    array([1.77463e+09, 1.77463e+09, 1.77463e+09])

• Data variables: (3)
  • adsimdet_stats1_total
    (time)
    float64
    2.925e+07 2.93e+07 2.818e+07

    object :

    adsimdet

    array([29246286.93641502, 29297296.66621307, 28175552.61160747])

  • adsimdet_stats1_max_value
    (time)
    float64
    268.8 269.9 269.5

    object :

    adsimdet

    array([268.76181093, 269.93448306, 269.48204907])

  • adsimdet_stats1_unique_id
    (time)
    int64
    2276 2277 2278

    object :

    adsimdet

    array([2276, 2277, 2278])

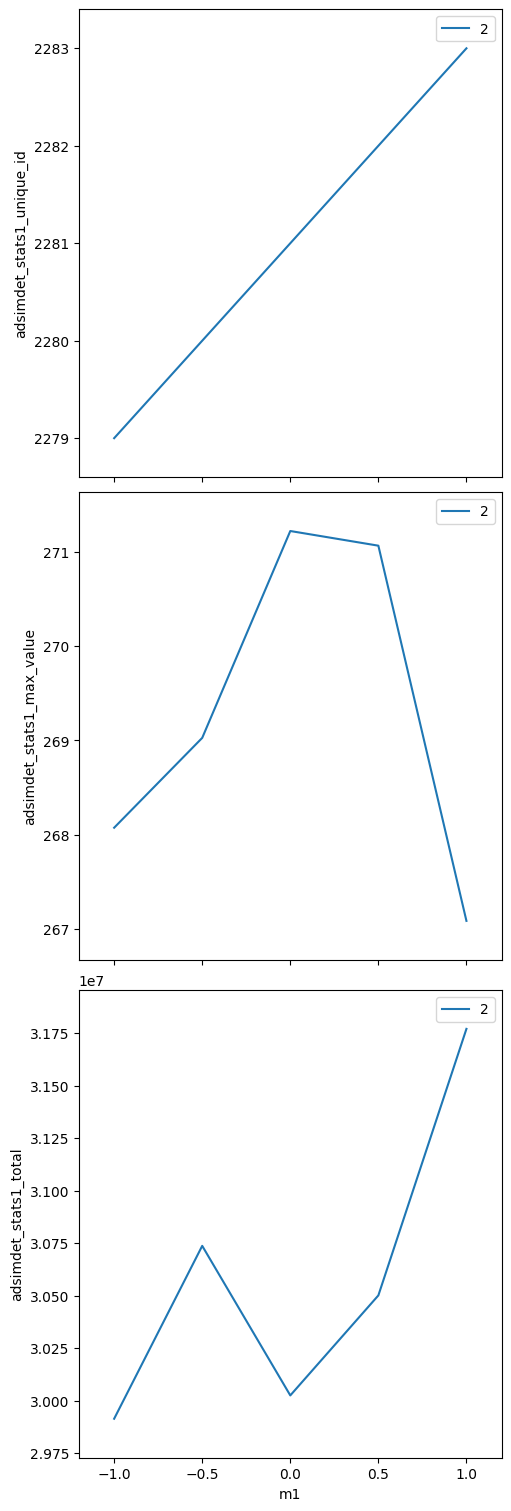

bp.scan — 1-D scan with one motor

Step m1 from −1 to +1 in 5 steps, collecting stats at each point.

uids = RE(bp.scan([adsimdet], m1, -1, 1, 5))
dataset = cat.v2[uids[-1]].primary.read()
dataset[["m1", "adsimdet_stats1_total", "adsimdet_stats1_max_value"]]

Transient Scan ID: 2     Time: 2026-03-27 11:49:40
Persistent Unique Scan ID: '1f640509-2ed0-41af-ace4-a7d1df6c6ce1'

New stream: 'primary'
+-----------+------------+------------+---------------------------+---------------------------+-----------------------+
|   seq_num |       time |         m1 | adsimdet_stats1_unique_id | adsimdet_stats1_max_value | adsimdet_stats1_total |
+-----------+------------+------------+---------------------------+---------------------------+-----------------------+
|         1 | 11:49:42.4 |    -1.0000 |                      2279 |                       268 |              29913680 |

|         2 | 11:49:43.6 |    -0.5000 |                      2280 |                       269 |              30736723 |

|         3 | 11:49:44.8 |    -0.0000 |                      2281 |                       271 |              30024676 |

|         4 | 11:49:45.9 |     0.5000 |                      2282 |                       271 |              30500824 |

|         5 | 11:49:47.0 |     1.0000 |                      2283 |                       267 |              31769754 |

+-----------+------------+------------+---------------------------+---------------------------+-----------------------+
generator scan ['1f640509'] (scan num: 2)

<xarray.Dataset> Size: 160B
Dimensions:                    (time: 5)
Coordinates:
  * time                       (time) float64 40B 1.775e+09 ... 1.775e+09
Data variables:
    m1                         (time) float64 40B -1.0 -0.5 -2.485e-06 0.5 1.0
    adsimdet_stats1_total      (time) float64 40B 2.991e+07 ... 3.177e+07
    adsimdet_stats1_max_value  (time) float64 40B 268.1 269.0 271.2 271.1 267.1

xarray.Dataset

• Dimensions:
  • time: 5
• Coordinates: (1)
  • time
    (time)
    float64
    1.775e+09 1.775e+09 ... 1.775e+09

    array([1.77463e+09, 1.77463e+09, 1.77463e+09, 1.77463e+09, 1.77463e+09])

• Data variables: (3)
  • m1
    (time)
    float64
    -1.0 -0.5 -2.485e-06 0.5 1.0

    object :

    m1

    array([-1.00000249e+00, -5.00002485e-01, -2.48536986e-06,  4.99997515e-01,
            9.99997515e-01])

  • adsimdet_stats1_total
    (time)
    float64
    2.991e+07 3.074e+07 ... 3.177e+07

    object :

    adsimdet

    array([29913680.35009194, 30736723.00137038, 30024675.79484376,
           30500823.5492648 , 31769753.59794427])

  • adsimdet_stats1_max_value
    (time)
    float64
    268.1 269.0 271.2 271.1 267.1

    object :

    adsimdet

    array([268.07475892, 269.02762319, 271.22170042, 271.06615316,
           267.08665612])

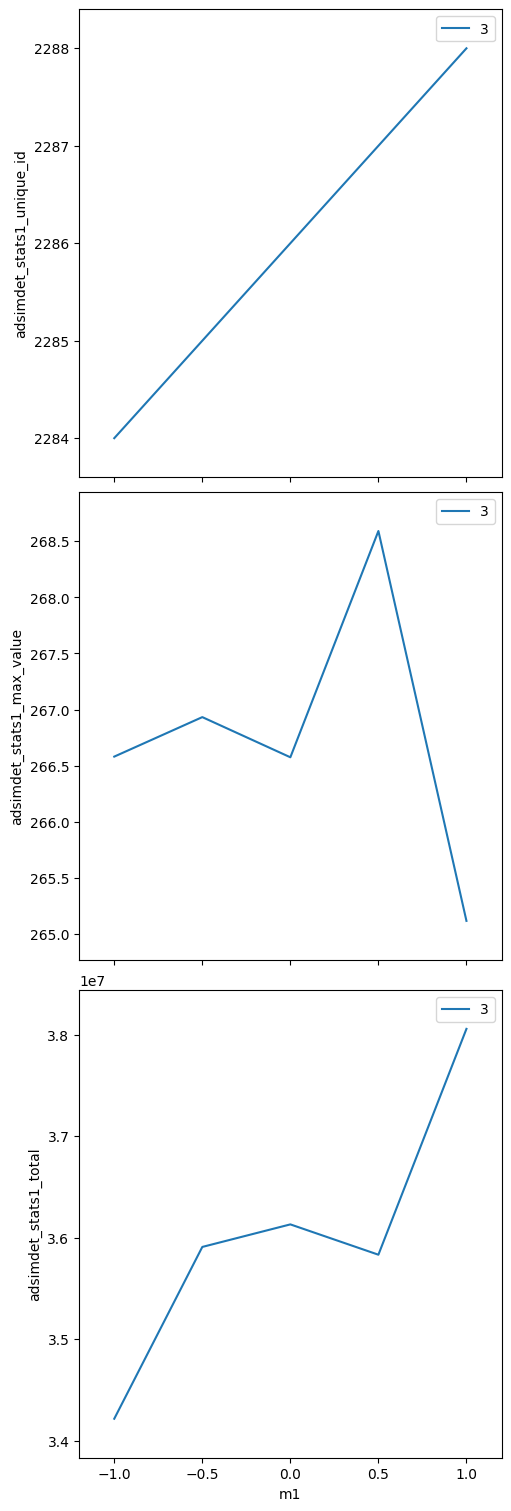

bp.scan — 1-D scan with two motors together

Both motors step simultaneously; same number of points.

uids = RE(
    bp.scan(
        [adsimdet],
        m1,
        -1,
        1,
        m2,
        0,
        2,
        5,
    )
)
dataset = cat.v2[uids[-1]].primary.read()
dataset[["m1", "m2", "adsimdet_stats1_total"]]

Transient Scan ID: 3     Time: 2026-03-27 11:49:48
Persistent Unique Scan ID: 'a55a6bef-07f5-4f13-b35e-833dd8efb708'

New stream: 'primary'
+-----------+------------+------------+------------+---------------------------+---------------------------+-----------------------+
|   seq_num |       time |         m1 |         m2 | adsimdet_stats1_unique_id | adsimdet_stats1_max_value | adsimdet_stats1_total |
+-----------+------------+------------+------------+---------------------------+---------------------------+-----------------------+
|         1 | 11:49:50.4 |    -1.0000 |     0.0000 |                      2284 |                       267 |              34214746 |

|         2 | 11:49:51.6 |    -0.5000 |     0.5000 |                      2285 |                       267 |              35908695 |

|         3 | 11:49:52.8 |    -0.0000 |     1.0000 |                      2286 |                       267 |              36131026 |

|         4 | 11:49:53.9 |     0.5000 |     1.5000 |                      2287 |                       269 |              35832060 |

|         5 | 11:49:55.1 |     1.0000 |     2.0000 |                      2288 |                       265 |              38058780 |

+-----------+------------+------------+------------+---------------------------+---------------------------+-----------------------+
generator scan ['a55a6bef'] (scan num: 3)

<xarray.Dataset> Size: 160B
Dimensions:                (time: 5)
Coordinates:
  * time                   (time) float64 40B 1.775e+09 1.775e+09 ... 1.775e+09
Data variables:
    m1                     (time) float64 40B -1.0 -0.5 -2.485e-06 0.5 1.0
    m2                     (time) float64 40B 0.0 0.5 1.0 1.5 2.0
    adsimdet_stats1_total  (time) float64 40B 3.421e+07 3.591e+07 ... 3.806e+07

xarray.Dataset

• Dimensions:
  • time: 5
• Coordinates: (1)
  • time
    (time)
    float64
    1.775e+09 1.775e+09 ... 1.775e+09

    array([1.77463e+09, 1.77463e+09, 1.77463e+09, 1.77463e+09, 1.77463e+09])

• Data variables: (3)
  • m1
    (time)
    float64
    -1.0 -0.5 -2.485e-06 0.5 1.0

    object :

    m1

    array([-1.00000249e+00, -5.00002485e-01, -2.48536986e-06,  4.99997515e-01,
            9.99997515e-01])

  • m2
    (time)
    float64
    0.0 0.5 1.0 1.5 2.0

    object :

    m2

    array([0. , 0.5, 1. , 1.5, 2. ])

  • adsimdet_stats1_total
    (time)
    float64
    3.421e+07 3.591e+07 ... 3.806e+07

    object :

    adsimdet

    array([34214746.36046077, 35908695.41090231, 36131026.35107907,
           35832059.68981712, 38058779.95324287])

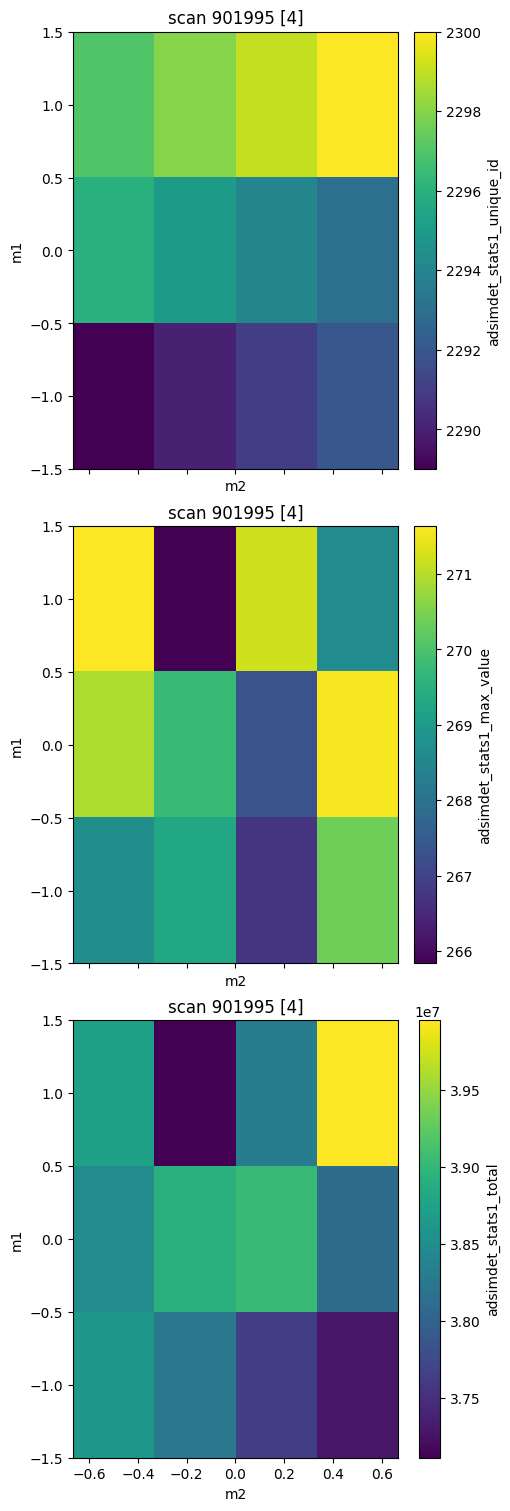

bp.grid_scan — 2-D mesh scan

m1 steps along the outer axis; m2 steps along the inner axis (snake pattern).

uids = RE(
    bp.grid_scan(
        [adsimdet],
        m1,
        -1,
        1,
        3,
        m2,
        -0.5,
        0.5,
        4,
        snake_axes=True,
    )
)
dataset = cat.v2[uids[-1]].primary.read()
dataset[["m1", "m2", "adsimdet_stats1_total", "adsimdet_stats1_max_value"]]

Transient Scan ID: 4     Time: 2026-03-27 11:49:56
Persistent Unique Scan ID: '90199571-e23d-4ff1-8a9d-456eb99e10fa'

New stream: 'primary'
+-----------+------------+------------+------------+---------------------------+---------------------------+-----------------------+
|   seq_num |       time |         m1 |         m2 | adsimdet_stats1_unique_id | adsimdet_stats1_max_value | adsimdet_stats1_total |
+-----------+------------+------------+------------+---------------------------+---------------------------+-----------------------+
|         1 | 11:49:58.9 |    -1.0000 |    -0.5000 |                      2289 |                       269 |              38630924 |

|         2 | 11:50:00.4 |    -1.0000 |    -0.1667 |                      2290 |                       269 |              38239819 |

|         3 | 11:50:01.7 |    -1.0000 |     0.1667 |                      2291 |                       267 |              37635304 |

|         4 | 11:50:03.1 |    -1.0000 |     0.5000 |                      2292 |                       270 |              37289665 |

|         5 | 11:50:05.1 |    -0.0000 |     0.5000 |                      2293 |                       272 |              38115543 |

|         6 | 11:50:06.4 |    -0.0000 |     0.1667 |                      2294 |                       267 |              39025189 |

|         7 | 11:50:07.7 |    -0.0000 |    -0.1667 |                      2295 |                       270 |              38914974 |

|         8 | 11:50:09.0 |    -0.0000 |    -0.5000 |                      2296 |                       271 |              38481101 |

|         9 | 11:50:11.1 |     1.0000 |    -0.5000 |                      2297 |                       272 |              38741140 |

|        10 | 11:50:12.4 |     1.0000 |    -0.1667 |                      2298 |                       266 |              37114590 |

|        11 | 11:50:13.8 |     1.0000 |     0.1667 |                      2299 |                       271 |              38317887 |

|        12 | 11:50:15.1 |     1.0000 |     0.5000 |                      2300 |                       269 |              39950394 |

+-----------+------------+------------+------------+---------------------------+---------------------------+-----------------------+
generator grid_scan ['90199571'] (scan num: 4)

<xarray.Dataset> Size: 480B
Dimensions:                    (time: 12)
Coordinates:
  * time                       (time) float64 96B 1.775e+09 ... 1.775e+09
Data variables:
    m1                         (time) float64 96B -1.0 -1.0 -1.0 ... 1.0 1.0 1.0
    m2                         (time) float64 96B -0.5 -0.1667 ... 0.1667 0.5
    adsimdet_stats1_total      (time) float64 96B 3.863e+07 ... 3.995e+07
    adsimdet_stats1_max_value  (time) float64 96B 268.7 269.3 ... 271.2 268.6

xarray.Dataset

• Dimensions:
  • time: 12
• Coordinates: (1)
  • time
    (time)
    float64
    1.775e+09 1.775e+09 ... 1.775e+09

    array([1.77463e+09, 1.77463e+09, 1.77463e+09, 1.77463e+09, 1.77463e+09,
           1.77463e+09, 1.77463e+09, 1.77463e+09, 1.77463e+09, 1.77463e+09,
           1.77463e+09, 1.77463e+09])

• Data variables: (4)
  • m1
    (time)
    float64
    -1.0 -1.0 -1.0 -1.0 ... 1.0 1.0 1.0

    object :

    m1

    array([-1.00000249e+00, -1.00000249e+00, -1.00000249e+00, -1.00000249e+00,
           -2.48536986e-06, -2.48536986e-06, -2.48536986e-06, -2.48536986e-06,
            9.99997515e-01,  9.99997515e-01,  9.99997515e-01,  9.99997515e-01])

  • m2
    (time)
    float64
    -0.5 -0.1667 0.1667 ... 0.1667 0.5

    object :

    m2

    array([-0.5    , -0.16667,  0.16667,  0.5    ,  0.5    ,  0.16667,
           -0.16667, -0.5    , -0.5    , -0.16667,  0.16667,  0.5    ])

  • adsimdet_stats1_total
    (time)
    float64
    3.863e+07 3.824e+07 ... 3.995e+07

    object :

    adsimdet

    array([38630924.01088971, 38239818.74823447, 37635303.9273299 ,
           37289664.92359541, 38115542.75860886, 39025188.75134905,
           38914974.08514836, 38481100.96227039, 38741139.60226437,
           37114590.37840187, 38317887.26763548, 39950393.51431159])

  • adsimdet_stats1_max_value
    (time)
    float64
    268.7 269.3 266.7 ... 271.2 268.6

    object :

    adsimdet

    array([268.728336  , 269.29294671, 266.7155301 , 270.34636562,
           271.58680379, 267.32806332, 269.74623088, 270.9302416 ,
           271.63723961, 265.83676214, 271.218378  , 268.64087571])

Bonus: scan with HDF5 image files

The scans above record only ROI statistics — no image files are written. To also write image files, add the hdf1 file-writer plugin to the detector. Everything else — the motor scan, the ROI statistics — works identically.

File paths

The area detector IOC and the bluesky workstation may mount the image directory under different paths. Define both so the HDF5 plugin can be configured correctly.

import pathlib

AD_IOC_MOUNT_PATH = pathlib.Path("/tmp")
BLUESKY_MOUNT_PATH = pathlib.Path("/tmp/docker_ioc/iocad/tmp")
IMAGE_DIR = "images"

# Must end with '/' — pathlib does not add it.
WRITE_PATH_TEMPLATE = f"{AD_IOC_MOUNT_PATH / IMAGE_DIR}/"
READ_PATH_TEMPLATE = f"{BLUESKY_MOUNT_PATH / IMAGE_DIR}/"

Create the detector with hdf1

Add the hdf1 plugin to the list passed to ad_creator(). The write_path_template and read_path_template tell the plugin where to write files (IOC path) and where bluesky can read them back (local path).

from apstools.devices import HDF5FileWriterPlugin
from apstools.devices import ensure_AD_plugin_primed

det_hdf = ad_creator(
    IOC,
    name="det_hdf",
    plugins=[
        "cam",
        "image",
        "pva",
        "roi1",
        "stats1",
        {
            "hdf1": {
                "class": HDF5FileWriterPlugin,
                "write_path_template": WRITE_PATH_TEMPLATE,
                "read_path_template": READ_PATH_TEMPLATE,
            }
        },
    ],
)
det_hdf.wait_for_connection(timeout=15)
print(f"{det_hdf.connected=}")

det_hdf.connected=True

Configure

Same ROI-statistics setup as above, plus HDF5-specific settings. ensure_AD_plugin_primed() ensures ophyd knows the image dimensions before acquisition begins.

det_hdf.roi1.nd_array_port.put(det_hdf.cam.port_name.get())
det_hdf.stats1.nd_array_port.put(det_hdf.roi1.port_name.get())

det_hdf.cam.stage_sigs["num_images"] = 1
det_hdf.cam.stage_sigs["wait_for_plugins"] = "Yes"
det_hdf.image.stage_sigs["blocking_callbacks"] = "No"
det_hdf.pva.stage_sigs["blocking_callbacks"] = "No"
det_hdf.roi1.stage_sigs["blocking_callbacks"] = "No"
det_hdf.stats1.stage_sigs["blocking_callbacks"] = "No"
det_hdf.hdf1.stage_sigs["blocking_callbacks"] = "No"

det_hdf.stats1.kind = "hinted"
det_hdf.stats1.total.kind = "hinted"
det_hdf.stats1.max_value.kind = "hinted"
det_hdf.stats1.unique_id.kind = "hinted"

det_hdf.hdf1.kind = "hinted"
det_hdf.hdf1.create_directory.put(-5)

ensure_AD_plugin_primed(det_hdf.hdf1, allow=True)

Scan — ROI statistics and HDF5 image files

The scan collects the same statistics as before. In addition, each image is written to an HDF5 file by the hdf1 plugin.

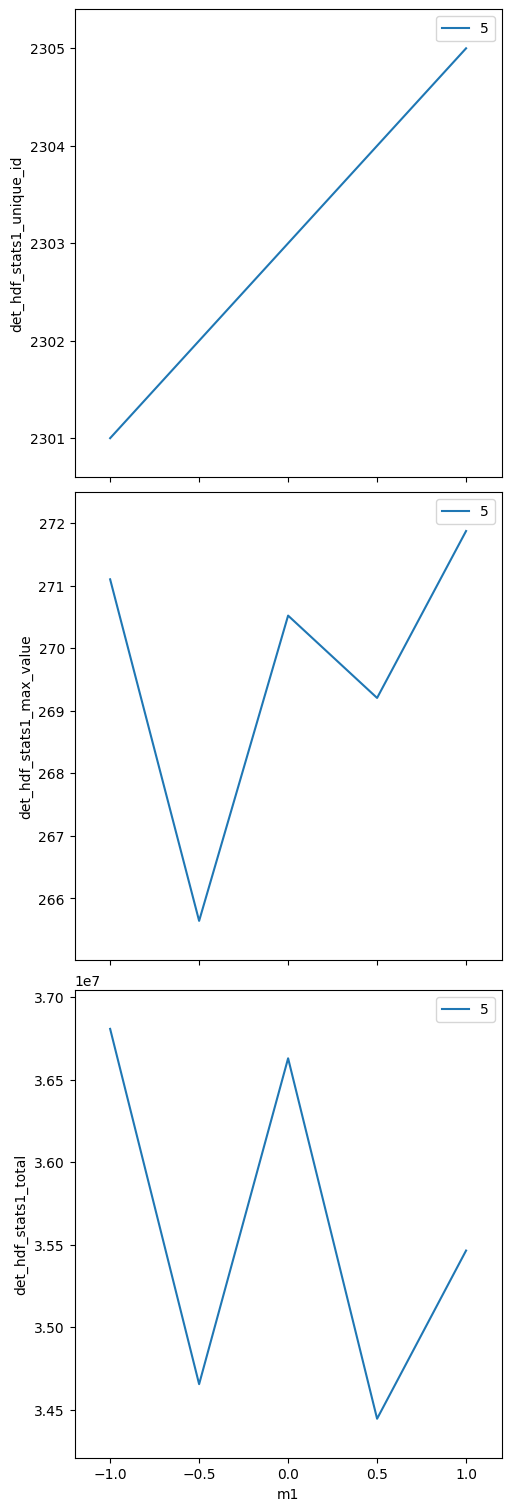

uids = RE(bp.scan([det_hdf], m1, -1, 1, 5))
dataset = cat.v2[uids[-1]].primary.read()
dataset[["m1", "det_hdf_stats1_total", "det_hdf_stats1_max_value"]]

Transient Scan ID: 5     Time: 2026-03-27 11:50:17
Persistent Unique Scan ID: '4d69ce0a-169b-412e-a27f-9767d8358f40'

New stream: 'primary'
+-----------+------------+------------+--------------------------+--------------------------+----------------------+
|   seq_num |       time |         m1 | det_hdf_stats1_unique_id | det_hdf_stats1_max_value | det_hdf_stats1_total |
+-----------+------------+------------+--------------------------+--------------------------+----------------------+
|         1 | 11:50:20.0 |    -1.0000 |                     2301 |                      271 |             36807077 |

|         2 | 11:50:21.4 |    -0.5000 |                     2302 |                      266 |             34654953 |

|         3 | 11:50:23.0 |    -0.0000 |                     2303 |                      271 |             36628788 |

|         4 | 11:50:24.4 |     0.5000 |                     2304 |                      269 |             34445429 |

|         5 | 11:50:25.8 |     1.0000 |                     2305 |                      272 |             35464250 |

+-----------+------------+------------+--------------------------+--------------------------+----------------------+
generator scan ['4d69ce0a'] (scan num: 5)

<xarray.Dataset> Size: 160B
Dimensions:                   (time: 5)
Coordinates:
  * time                      (time) float64 40B 1.775e+09 ... 1.775e+09
Data variables:
    m1                        (time) float64 40B -1.0 -0.5 -2.485e-06 0.5 1.0
    det_hdf_stats1_total      (time) float64 40B 3.681e+07 ... 3.546e+07
    det_hdf_stats1_max_value  (time) float64 40B 271.1 265.6 270.5 269.2 271.9

xarray.Dataset

• Dimensions:
  • time: 5
• Coordinates: (1)
  • time
    (time)
    float64
    1.775e+09 1.775e+09 ... 1.775e+09

    array([1.77463e+09, 1.77463e+09, 1.77463e+09, 1.77463e+09, 1.77463e+09])

• Data variables: (3)
  • m1
    (time)
    float64
    -1.0 -0.5 -2.485e-06 0.5 1.0

    object :

    m1

    array([-1.00000249e+00, -5.00002485e-01, -2.48536986e-06,  4.99997515e-01,
            9.99997515e-01])

  • det_hdf_stats1_total
    (time)
    float64
    3.681e+07 3.465e+07 ... 3.546e+07

    object :

    det_hdf

    array([36807076.88163367, 34654952.65227927, 36628788.42419776,
           34445428.83655453, 35464250.08995721])

  • det_hdf_stats1_max_value
    (time)
    float64
    271.1 265.6 270.5 269.2 271.9

    object :

    det_hdf

    array([271.09894955, 265.64177517, 270.51928954, 269.20357072,
           271.87077166])

Locate the image file

from apstools.devices import AD_full_file_name_local

image_file = AD_full_file_name_local(det_hdf.hdf1)
print(f"Image file: {image_file}")
print(f"Exists on local filesystem: {image_file.exists()}")

Image file: /tmp/docker_ioc/iocad/tmp/images/d3f38f4e-1bf7-4846-9139_000000.h5
Exists on local filesystem: True
